All capabilities
Decorative Finish / Surface capability

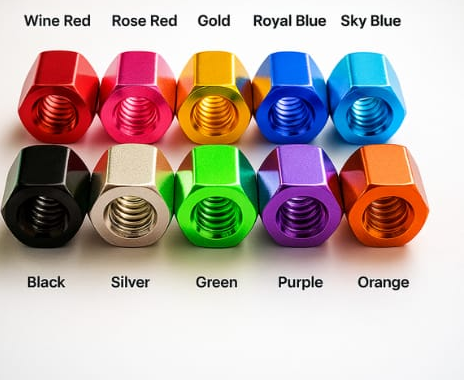

Colour Anodizing
Repeatable industrial colour with depth, clarity and lasting performance.
Discuss this finishRPI / COLOUR-ANODIZING
CONTROLLED SURFACE SYSTEM
Overview
A surface engineered around the part.
Micro-porous oxide is developed under controlled bath chemistry and precisely dyed before sealing to create expressive finishes that remain engineered for demanding service environments.
Our process planning considers alloy series, machining condition, dimensional sensitivity, racking position, visual zones and service environment before production begins in our Rajkot plant.
Technical Parameters
Process Specifications
Coating Thickness10 – 25 Microns
Color ToleranceDelta E < 1.0 vs Master Sample
Dye AbsorptionMicro-porous Electro-fill
Process StandardType II Class II Anodizing
Sealing MethodNickel Acetate & Hydrothermal
RoHS / REACH100% Compliant
01
Color depth & clarity
02
Light fastness
03
Scratch resistance
04
Surface uniformity
05
Chemical stability
06
Corrosion resistance
Process ArchitectureControlled from substrate
Controlled from substrate
to sealed surface.
Parameters are specifically adapted for colour anodizing, part geometry and approved quality requirements.
01
Mechanical pre-treatment & chemical etch
02
Oxide film development (Sulfuric Acid Anodizing)
03
Temperature-controlled dye tank immersion
04
Hydrated oxide pore crystallization & seal
05
Spectrophotometer color & luster audit
Target Applications
Designed for performance.
Colour Anodizing is specifically developed around the functional and visual demands of these key component types.
01
Consumer products
02
Automotive trim
03
